Intersoft WebInput Documentation
Walkthrough: Creating password input using Wizard
See Also Send Feedback
Intersoft WebInput > Getting Started > Samples and Walkthrough > WebInput Walkthroughs > Walkthrough: Creating password input using Wizard

Glossary Item Box

This walkthrough shows you how to create password data entry in WebInput.

During this walkthrough, you will learn how to do the following:

 Prerequisites

In order to complete this walkthrough, you will need the following:

  • Visual Studio 2005 Application.

 Step-By-Step Instructions

To create password input using Wizard

  1. Launch Visual Studio.NET 2005.
  2. Click on File menu, then select New and click Web Site.
  3. Select ASP.NET Web Site in the Template box and set Location to HTTP.
  4. Named the Web Site and click OK.
  5. Right-click on Project's name and select Add New Item.
  6. Select Intersoft AppForm in the My Templates box and named it as Walkthrough.aspx.
  7. Drag WebInput instance to the WebForm.
  8. Notice that WebInput.NET Wizard will automatically appear afterwards.

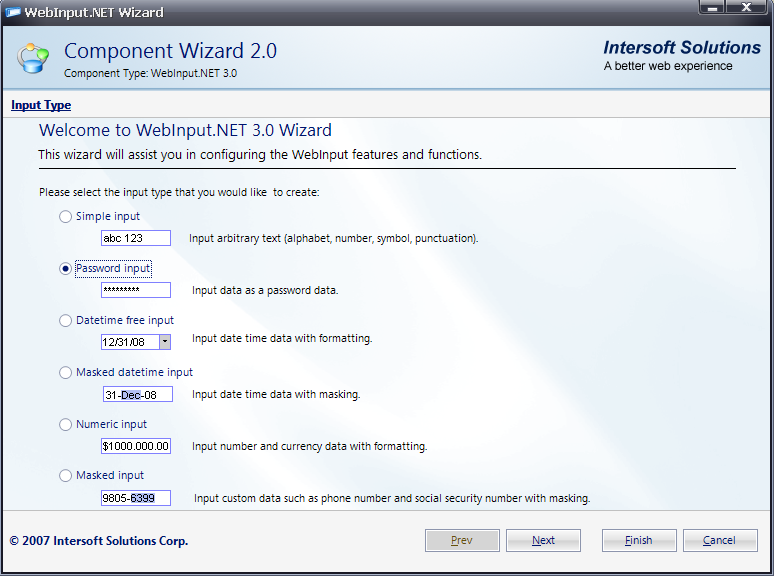

  9. In Input Type section, select Password input to input password data and click Next.

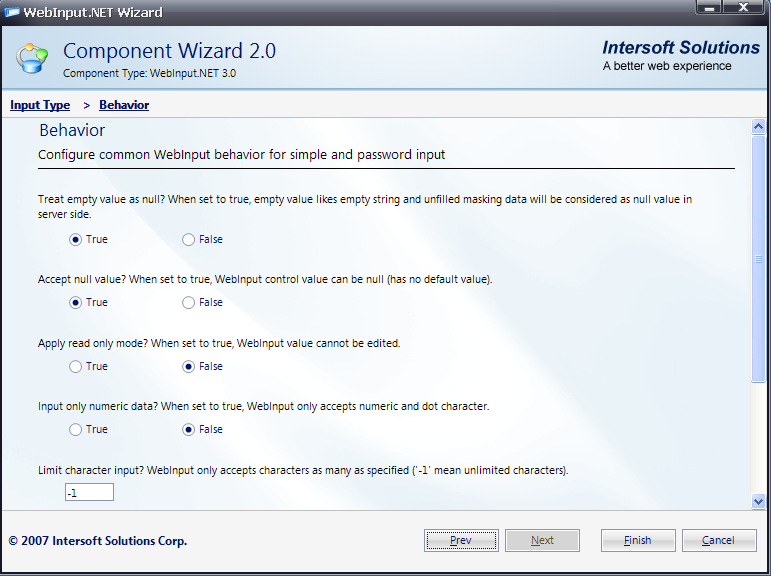

  10. You will go to the next section which is called Behavior. In this section, you will be able to configure common WebInput's behavior related to simple and password input. Click Finish to apply the settings.

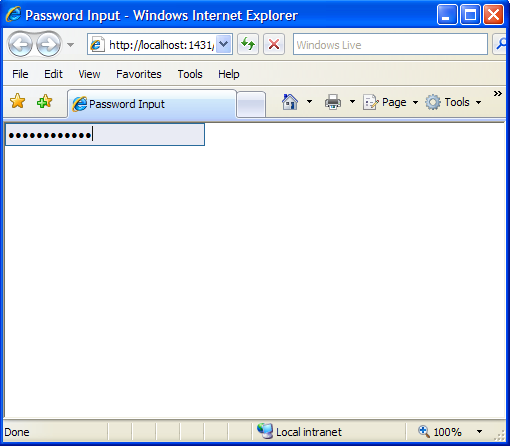

  11. Save and run the project. The WebInput will look like following.
